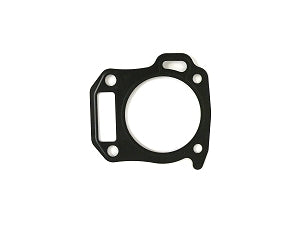

Tillotson 196cc Clone Fire Ring Head Gasket - .045" Thick - AKRA / NKA Legal

Every millisecond counts when you are dialing in a racing kart, and achieving the perfect combustion chamber seal is non-negotiable for top-tier performance. The Tillotson OEM .045-inch Fire Ring Head Gasket (MPN: 138190023 / TPP-FRHG) is engineered specifically for 196cc clone engines, delivering the ultimate clamping force required for high-compression racing applications. Unlike standard stamped steel alternatives, this composite fiber gasket features an integrated metal fire ring that bites into the cylinder head and block, ensuring zero pressure loss during the power stroke. Whether you are running AKRA or NKA rule sets, maintaining a precise .045" quench area is critical for maximizing volumetric efficiency without risking piston-to-head contact.

Beyond Steering Components: The Core of Engine Sealing

While many racers spend hours tweaking their steering components to shave tenths off their lap times, true straightaway speed is born in the combustion chamber. A blown head gasket will end your race weekend instantly. By utilizing this Tillotson fire ring gasket, you guarantee a leak-proof interface capable of withstanding extreme cylinder pressures and thermal expansion. It accommodates standard 68mm bores and safely clears up to +.030" overbores, making it the go-to choice for elite engine builders assembling modified 196cc clone platforms.

Synergy with Your Air Filter Engine Setup

An optimized air filter engine configuration flows massive amounts of oxygen, demanding a head gasket that can contain the resulting volatile combustion. The Tillotson .045 gasket stabilizes the top-end structure, preventing the micro-flexing that leads to gasket blowout. This rigid seal translates to consistent compression ratios, allowing your carburetor and intake tract to function at peak efficiency from the green flag to the checkered.

Leave the Tire Tools, Grab Your Torque Wrench

Stop wasting time chasing phantom tuning issues in the pits. Put down the tire tools and focus on torquing your top-end correctly with a gasket designed for the rigors of competitive karting.

• Targeted Compatibility: Precision cut for all 196cc clone engines, supporting 68mm standard bores up to +.030" over.
• Integrated Fire Ring: Features a robust metal fire ring that dramatically enhances pressure hold for maximum combustion power.
• Nominal .045" Thickness: Delivers a consistent and reliable quench area, crucial for high-performance tuning.
• Composite Fiber Construction: Resists thermal breakdown and provides superior sealing over standard thin metal gaskets.
• AKRA & NKA Compliant: Meets the rigorous technical specifications required for sanctioned competitive racing classes.
• Blowout Resistance: Engineered to withstand the extreme cylinder pressures generated by modified top-end builds.
• Leak-Proof Interface: Organizes your engine assembly by guaranteeing a tight, flush fitment between the block and cylinder head.

Frequently Asked Questions

Q: Is this gasket compatible with overbored engines?

A: Yes, this .045" fire ring gasket is designed for standard 68mm bores and safely accommodates overbores up to +.030".

Q: Why is the integrated fire ring important for my clone engine?

A: The metal fire ring bites into the cylinder head and block, providing superior clamping force and preventing pressure loss, which is essential for maintaining high compression in racing applications.

Q: Is this gasket legal for AKRA and NKA racing?

A: Yes, this gasket is engineered to meet the technical specifications for both AKRA and NKA rule sets, making it a reliable choice for sanctioned competitive karting.

Q: Should I use any sealant when installing this head gasket?

A: This composite fiber gasket is designed to create a leak-proof interface on its own. Ensure your cylinder head and block surfaces are clean, flat, and free of debris before installation to ensure a proper seal.

Q: How does the .045" thickness affect my engine performance?

A: The .045" thickness provides a precise quench area, which is critical for maximizing volumetric efficiency and combustion stability without risking piston-to-head contact.
