Throttle / Brake Position Sensor (MC5TBS) | MyChron 4, 5, 6

Throttle / Brake Position Sensor (MC5TBS) for AiM MyChron 5 and MyChron 6 data loggers.

The MC5TBS throttle and brake position sensor allows you to record driver pedal input directly. This sensor captures exactly when, how fast, and how consistently the throttle or brake is applied, turning driver feel into measurable data.

This sensor is compatible with both MyChron 5 and MyChron 6 systems and is commonly used for driver development, braking analysis, and consistency improvement.

What this sensor measures

• Throttle position or brake pedal position as a percentage
• Rate of application and release
• Consistency lap to lap
• Driver input timing relative to speed, RPM, and delta

Why throttle and brake data matters

Lap time is often lost not because of setup, but because of how inputs are applied. The throttle and brake position sensor makes driver inputs visible, allowing you to see differences that are impossible to feel from the seat.

When combined with GPS, RPM, and delta data, this sensor helps identify:

• Late or early throttle application
• Overlapping throttle and brake usage
• Inconsistent brake release into corners
• Hesitation or over-aggressive pedal inputs

Driver development and coaching use

The MC5TBS is widely used for driver coaching and comparison. By overlaying throttle or brake traces between laps or between drivers, it becomes easy to see where time is being lost or gained.

• Compare fast laps versus average laps
• Compare driver A versus driver B
• Identify braking confidence and release timing
• Improve throttle pickup consistency on corner exit

What you can learn with data acquisition

This sensor becomes especially powerful when reviewed with Race Studio software or during a remote data acquisition session.

• Throttle trace timing relative to apex and exit speed
• Brake pressure buildup and release behavior
• Driver smoothness versus lap time consistency
• Input timing differences that affect delta time

Compatibility

• AiM MyChron 5
• AiM MyChron 5S
• AiM MyChron 6
• AiM MyChron 6 2T

Installation notes

The MC5TBS is a linear position sensor designed to be mounted to either the throttle pedal or brake pedal. Proper mounting ensures smooth, repeatable readings and accurate data.

Calibration is performed inside AiM Race Studio software and allows the full pedal travel to be mapped correctly.

What’s included

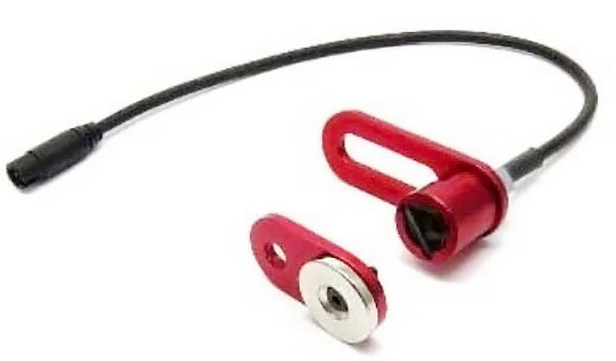

• Throttle / Brake Position Sensor (MC5TBS)
• Pre-wired sensor harness

Technical overview

• Sensor type: Linear position sensor
• Output: Analog position signal
• Use case: Throttle or brake input measurement
• Software support: AiM Race Studio 2 and Race Studio 3

Note: Proper installation and calibration are required for accurate data. For best results, review sensor data alongside GPS, RPM, and delta channels.
