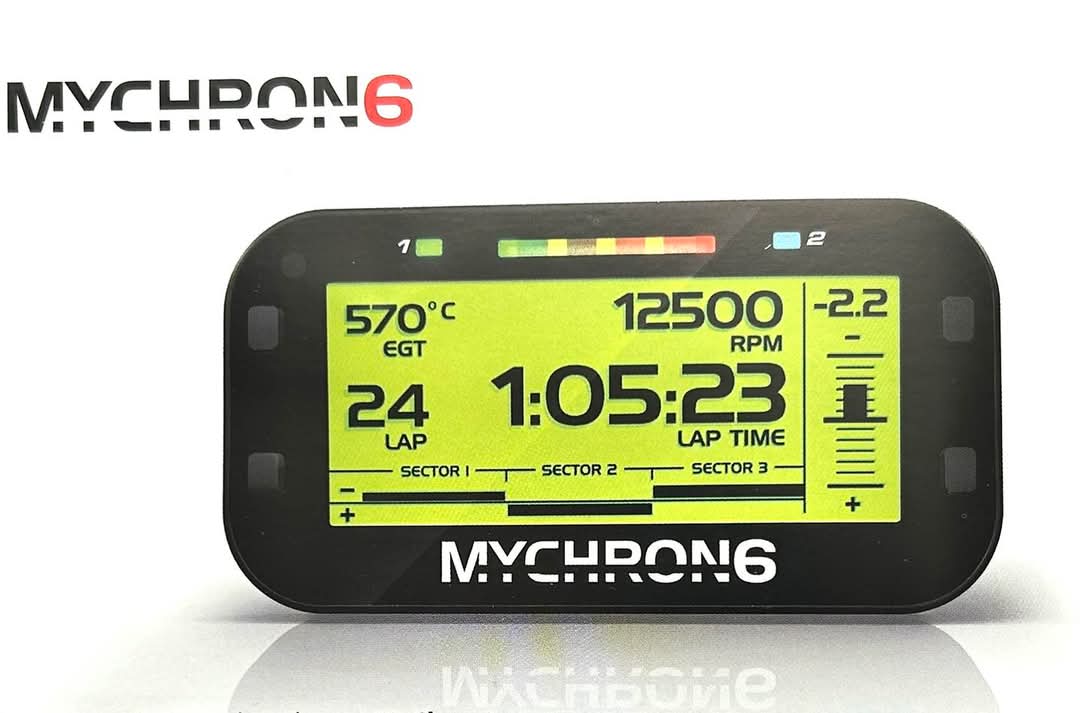

MyChron 6 Kart Data Logger with Included Data Session

No temperature sensor is included. This version is intended for racers upgrading from a MyChron 5 who already own compatible temperature sensors.

To reuse your existing setup, you will need a 3-pin K-type patch cable, commonly listed as “MyChron Sensor Patch Cable 3 Pin K Type Yellow Patch Cable.”

MyChron 6 Kart Data Logger with an included 30-minute remote data acquisition session.

The MyChron 6 is designed for racers who want more than basic lap timing. Compared to the MyChron 5 and 5S, it delivers a substantial upgrade in usability, real-time driver feedback, and data clarity. Features such as the live delta bar, wide high-resolution display, 6-axis inertial platform, Bluetooth connectivity, and 25Hz GPS allow drivers to understand performance while driving, not just after the session.

This configuration focuses on driver performance and clean data. It is ideal for racers who want the MyChron 6 platform now and plan to add sensors later, or who want to start with pure driving analysis before expanding.

Why MyChron 6 is a major step forward

• Live delta bar display showing gains and losses versus your best lap in real time
• Wide high-resolution screen for clearer RPM, splits, and warnings at speed
• 20-hour internal battery with modern USB-C charging
• Bluetooth and WiFi connectivity for fast downloads and device pairing
• 6-axis IMU capturing acceleration, braking, pitch, and roll
• 25Hz GPS for accurate speed, position, and delta calculations
• Integrated track database with over 4,000 tracks worldwide

Real-time driver feedback that actually works

The MyChron 6 is built around driver improvement. The live delta bar provides immediate feedback corner by corner, allowing drivers to adjust lines and braking points on the fly. Configurable LEDs and alarms keep critical information visible without forcing the driver to look down or guess.

What you can learn in the included 30-minute data session

Each MyChron 6 purchase includes a 30-minute remote data acquisition session. This time does not need to be used for basic setup. It can be used entirely for learning, analysis, or answering specific performance questions.

First priority topics

• Verifying track map accuracy and start-finish placement
• Understanding how delta time is calculated and displayed
• Identifying repeatable lap time versus one-off fast laps

Intermediate topics

• RPM usage across the lap and down the straights
• Braking and throttle trend identification
• Lap-to-lap consistency and driver repeatability

Advanced topics

• Corner-by-corner delta analysis to isolate time loss
• Driver input effects using IMU data
• Overlay comparisons between sessions or drivers

Many racers use the included session to understand what is possible, then add more time once they see how much clarity the data provides.

Why racers add additional data acquisition time

The included 30 minutes is often enough to identify where time is being lost. Additional data acquisition time is what turns those findings into repeatable improvements over an entire race weekend or season.

• 2 hours for full session review and clear action items
• 4 hours for multi-session comparison and setup validation
• 8 hours for structured driver development and long-term improvement

Remote sessions can be scheduled while you are at the track or after sessions are complete, providing professional-level analysis without needing a full-time data engineer on site.

Optional sensor upgrades to unlock deeper MyChron 6 data

The MyChron 6 is extremely powerful on its own. Adding the right sensors unlocks a deeper level of analysis when you are ready.

Front Wheel Speed Sensor (highly recommended)

View Front Wheel Speed Sensor for MyChron 6

Measures true vehicle speed independent of engine RPM. This is one of the most valuable upgrades available.

• True entry, mid-corner, and exit speed
• Rolling speed loss through corners
• Acceleration efficiency versus RPM
• Gear ratio effectiveness
• Brake drag and coast-down losses

Infrared Tire Temperature Sensors

View Infrared Tire Temperature Sensor Kit

Provides insight into how each tire is loaded throughout the lap, removing guesswork from chassis balance.

• Inside versus outside tire temperature balance
• Corner-specific loading trends
• Driving style impact on tire heat
• Tire performance over a run

Required mounting kit for infrared tire temperature sensors

When combined with GPS, RPM, IMU, and wheel speed data, these sensors enable advanced Race Studio 3 analysis such as RPM histograms, speed versus RPM efficiency zones, and delta-based setup validation.

Compatibility

• AiM MyChron 6

What’s included

• MyChron 6 data logger
• Battery charger with cable
• RPM cable
• USB-C charging cable
• AiM sticker
• 30-minute remote data acquisition session
• No temperature sensor or patch cable included

Note: After checkout, you will be contacted to schedule your included session. If you already have MyChron 6 data files available, having them ready will help maximize the time. If not, reference data can be used or the session can focus on optimal device setup.

MyChron 6 specifications

• GPS: 25 Hz
• Inertial platform: 6-axis, 50 Hz
• Display resolution: 320 × 136 pixels
• Multifunction LEDs: 5 RGB shift LEDs
• Alarm LEDs: 2 configurable
• Memory: 4 GB internal
• Connectivity: WiFi and Bluetooth
• Battery: Rechargeable lithium
• Waterproof rating: IP67
• Dimensions: 150 × 79 × 36.6 mm
• Weight: 370 g

Predictive split-time LED feedback

The MyChron 6 provides real-time predictive lap feedback using the integrated LED bar. Instead of waiting until the end of the lap, the driver receives immediate feedback at custom split points around the track.

As each split is crossed, the LEDs update to show time gained in green or time lost in red compared to a reference lap. This allows drivers to instantly understand whether a change in line, braking point, or throttle application improved or hurt lap time.

Split points are fully configurable, making it possible to focus on specific corners, sectors, or problem areas rather than relying on overall lap time alone.

This visual feedback system reduces guesswork and allows drivers to correct mistakes immediately, making it one of the most effective driver improvement tools available on the MyChron 6.
