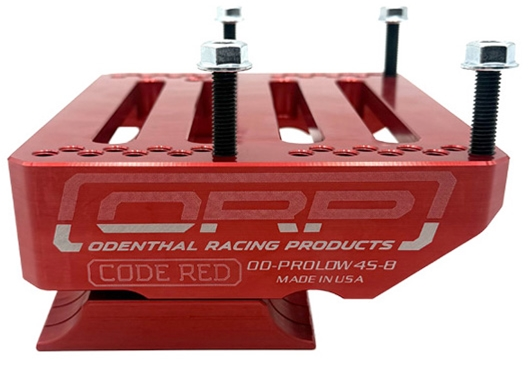

• Close-up detail of red anodized Code Red engine mount engraving showing ORP Odenthal Racing Products logo, CODE RED badge, part number OD-PROLOW4S-8 and Made in USA on white background

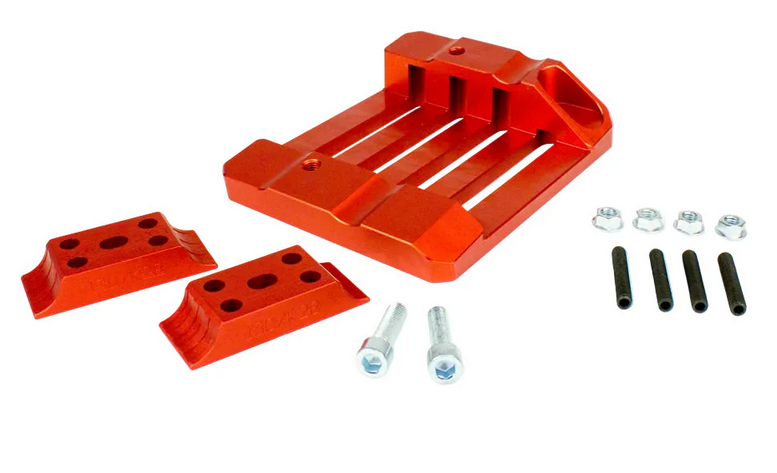

  • Red anodized LO206 Code Red one-piece engine mount with matching red clamps, silver bolts, black standoffs and locknuts laid out on white background

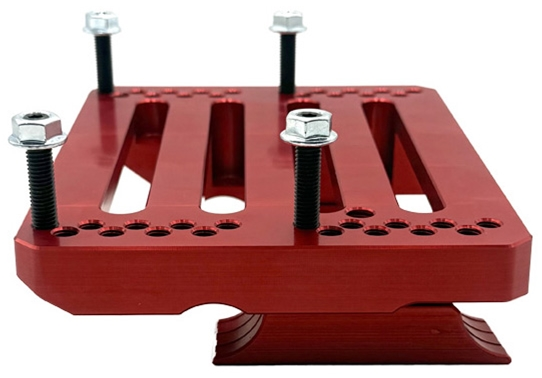

  • Top view of assembled red Code Red engine mount with clamps and hardware installed showing slotted lightening pockets and perimeter mounting holes on white background

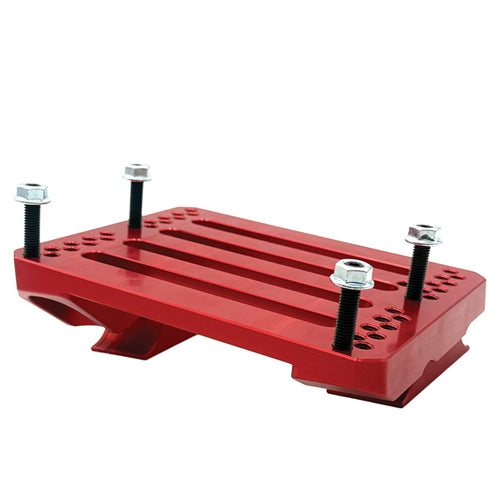

  • Side profile view of low-height red angled LO206 Code Red engine mount with full hardware installed on white background

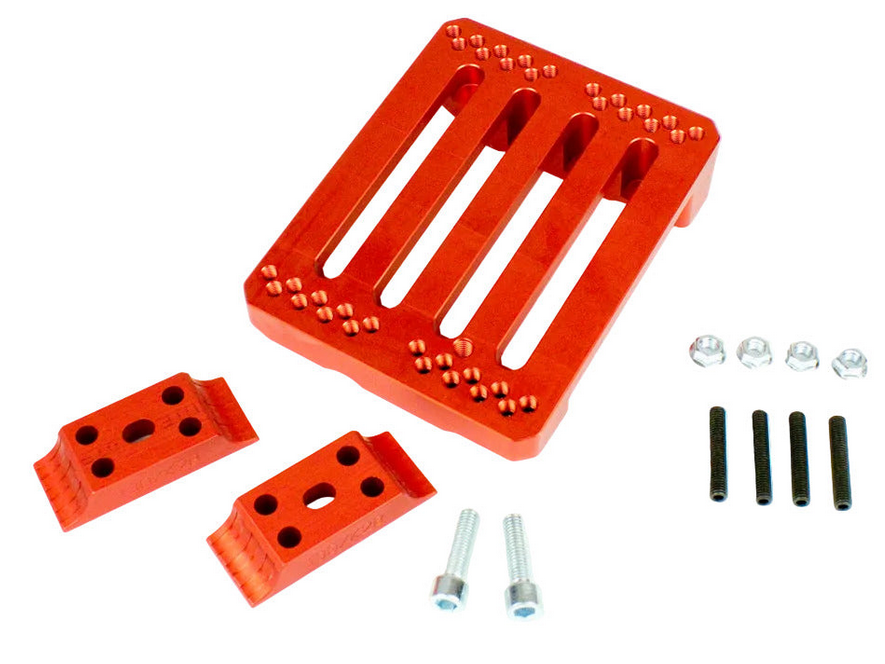

  • Odenthal Code Red LO206 one-piece engine mount showing top slot pattern and lightening pockets machined into red anodized aluminum on white background

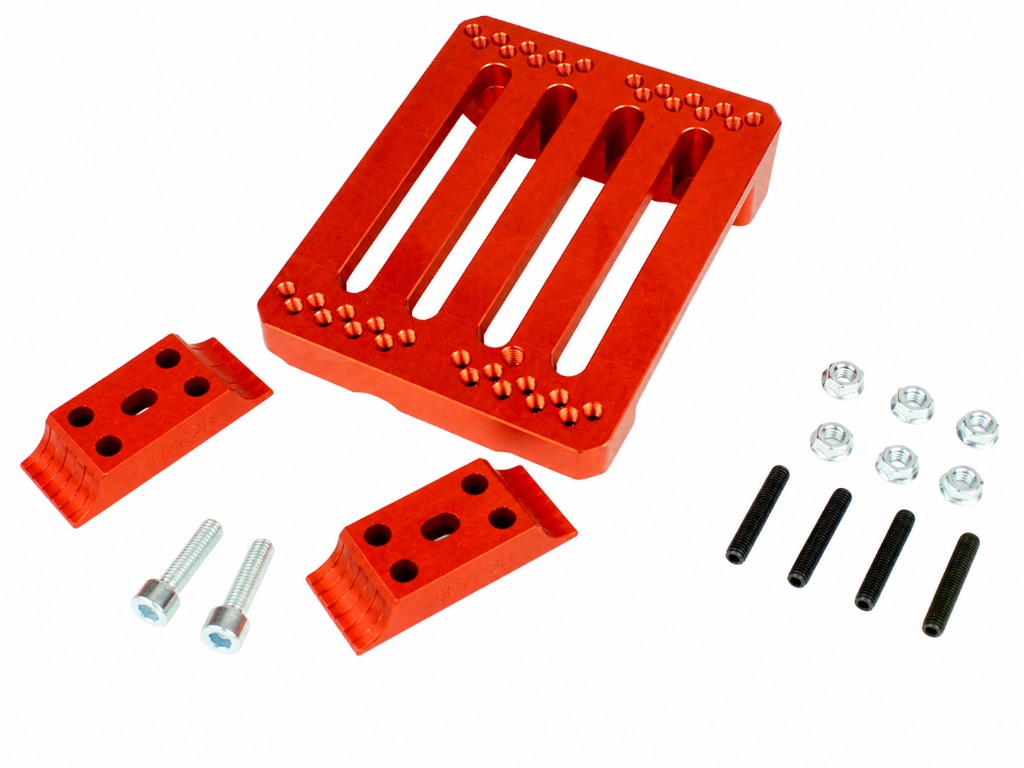

  • Odenthal Code Red LO206 engine mount complete kit overview with mount, red clamps, silver bolts, black standoffs and locknuts laid out on white background
1 6

Odenthal Racing Products

LO206 Red Odenthal - Special Code Red Special - Performance Engine Mount

LO206 Red Odenthal - Special Code Red Special - Performance Engine Mount

$235.00 USD
$235.00 USD
Sale Sold out
Shipping calculated at checkout.
Tube Diameter
⚙ HOW TO CHOOSE YOUR CLAMP SIZE

You need to know two things about your chassis: tube diameter and rail spacing type (I or K). Both are measured at the motor mount area on the driver's right side near the rear axle — the section with two parallel tubes that hold the mount.

Option 1 — Tube Diameter

Measure the outer diameter of one frame rail tube. Most karts use:

  • 28mm — common on cadet/junior karts and some Birel AM29
  • 30mm — most common; Tony Kart, Kosmic, Margay, Coyote, VLR 30mm
  • 32mm — larger senior chassis; some Tony Kart, FA Kart, Top Kart

Option 2 — Rail Spacing (I or K)

Measure outer-to-outer across both rails, then subtract one tube diameter:

  • I Type — result is 92mm — European / most non-CRG karts
  • K Type — result is 90mm — CRG-derived chassis

Example: outer-outer = 122mm, tube = 30mm → 122−30 = 92mm → I Type

🔎 Quick Reference by Kart Brand

Chassis Typical Size Notes
Birel AM29 I28 28mm tube, 92mm spacing
Tony Kart Racer I30 or I32 Measure to confirm
Kosmic Kart I28 or I30 Measure to confirm
FA Kart I30 or I32 Measure to confirm
Top Kart I30 or I32 Measure to confirm
Margay I30
Coyote I30
VLR I28
MGM I32
CRG (all models) K Type 90mm spacing; measure tube for 28/30/32
All Cadet karts I28 Unless CRG-based chassis
Swift Kart A Flyer I30 Perfect fit

Not sure? Email us or use our live chat and we'll confirm your size before you order.

This red one-piece engine mount is the upgraded version of our old LO206 mount. It bolts your Briggs LO206 or similar four-cycle engine rigidly to the chassis of an international rail kart. Machined from 6061 aluminum with lightening pockets, it delivers the exact engine positioning that experienced racers trust from slider mounts but without the extra weight or height.

Because this one-piece design has no separate plate, it sits a full 1.5 inches lower than the old LO206 8-degree mount with the plate. That gives you a serious aero gain.. an entire 1.5 inches times the width of the engine in reduced frontal area drag. Less drag up front means better top speed and more consistent lap times all day long.

Racers pick the Code Red mount because it shaves 2.6 lbs off a traditional slider while keeping every ounce of strength. The low-profile angled design lowers your center of gravity even more, the multiple chassis holes let you fine-tune setup, and the included red clamps plus full hardware mean you can install it and get back on track fast.

  • Material: 6061 aluminum, red anodized finish
  • Design: One-piece angled low-profile with lightening pockets
  • Weight: 3.174 lbs with clamps (2.6 lbs lighter than slider mount)
  • Compatibility: Briggs LO206, Animal, World Formula, flathead, clones, Honda 4-cycle engines on international rail karts
  • Included: Mount, matching red clamps (size chosen at checkout), full install hardware
  • Part number: OD-PROLOW4S-8, Made in USA

Frequently Asked Questions

  1. Which engines and karts does this Code Red mount fit? It is designed for Briggs LO206, Animal, World Formula, flathead, clones and Honda 4-cycle engines on international rail karts and provides the same proven positioning as earlier slider designs. 28mm Cadet / 28/30mm Birel AM29 , 30mm Tony Kart, CRG, Parolin, Eagle... and 32mm as well, all racing karts. Fits the EAGLE as well, which is a american made kart. Fits perfect on the Swift Kart A Flyer!
  2. How much weight does the one-piece angled mount actually save? The complete assembly with clamps weighs 3.174 lbs and is claimed 2.6 lbs lighter than a standard slider mount, dropping your kart's center of gravity for better handling.
  3. Is installation hardware and the correct clamp size included? Yes, every LO206 Code Red mount ships with full install hardware plus a pair of red clamps in the exact size you select at checkout so you can bolt it on immediately.

✓ Product Highlights

  • ✓One-piece angled mount rigidly holds Briggs LO206 and similar 4-cycle engines on international rail karts.
  • ✓Machined from 6061 aluminum with red anodized finish for corrosion resistance.
  • ✓Weighs 3.174 lb complete with clamps - 2.6 lb lighter than a traditional slider mount.
  • ✓Sits a full 1.5 inches lower than the old LO206 8-degree mount with plate.. giving you massive aero gain and 1.5 inches x engine width of frontal area drag reduction.
  • ✓Low-profile angled design lowers the engine center of gravity for improved handling.
  • ✓Lightening pockets machined into the mount maintain strength while reducing mass.
  • ✓Multiple chassis mounting holes allow racers to fine-tune engine position and setup.
  • ✓Includes matching red clamps, four black standoffs, four silver bolts, and locknuts.
  • ✓Bolt-on installation uses the supplied hardware and requires no additional parts.
  • ✓Proudly manufactured in the USA by Odenthal Racing Products.
