Crank End Play Shims for Precise Briggs Animal Engine Setup

Crank End Play Shims for Precise Briggs Animal Engine Setup

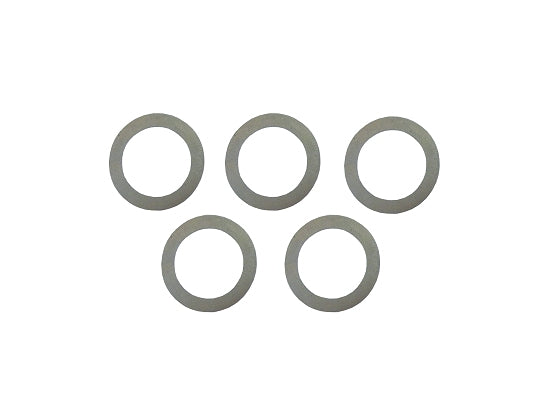

Tighten tolerances in your crank assembly using these shims. For Briggs Animal and LO206, SKU 555652 fine-tunes end play, eliminating slop that causes inefficiency and noise. Proper spacing means truer piston travel, amplifying output to the drivetrain.

Assorted thicknesses for exact adjustments.

Steel construction withstands thrust loads.

Enhances overall engine balance for vibration-free runs.

Racers use them to organize bottom-end builds, achieving harmony that boosts speed without excess friction. Feel the refinement as your kart hums efficiently, shims turning potential play into pure drive.

Frequently Asked Questions

Q: Why is it important to adjust crank end play in a Briggs Animal or LO206 engine?

A: Excessive end play creates "slop" in the crankshaft, which leads to vibration, noise, and power loss. By using these shims to tighten tolerances, you ensure truer piston travel and a more efficient transfer of power to the drivetrain.

Q: How do I determine which shim thickness to use?

A: You should measure your current end play using a dial indicator while the crankcase is assembled. Use the shims to bring the clearance within the manufacturer's recommended specifications for your specific engine build.

Q: Are these shims compatible with both the LO206 and the Animal engine?

A: Yes, these shims are designed to work with both the Briggs & Stratton Animal and the LO206 engine platforms to help you achieve a precise bottom-end setup.

Q: Do I need special tools to install these shims?

A: While the shims themselves are simple to install during the assembly of the crankcase, you will need a dial indicator or feeler gauges to accurately measure the end play before and after installation to ensure you have achieved the correct clearance.
