Swift Karting

Fuel Line Cable Management Clips - Kart Frame Clips

Name: Fuel Line Cable Management Clips - Kart Frame Clips
Brand: Swift Karting
SKU: SK-3d-fuel-line-cable-mgmnt-BLK-30MM-4PK
Price: 9.0 USD
Availability: InStock

Fuel Line Cable Management Clips - Kart Frame Clips

$9.00 USD

Sale Sold out

Shipping calculated at checkout.

Chassis size 30mm 29mm 28mm 1.25 in (1-1/4 in) 1.125 in (1-1/8 in)

Pack 4-pack 6-pack 10-pack Single

If you are just getting into karting these are small 3D printed holders that clip onto the frame tubes of your go kart. They keep the fuel line from rubbing the ground or getting kinked and hold your throttle cable and smaller wires in place so everything stays tidy lap after lap.

For experienced racers the clips are printed in PETG for strength and heat resistance. The center hole measures 9.3mm to fit 3/8 inch OD fuel line with a light grip that avoids any flow restriction. Additional holes are 5mm for throttle cable housing and 3mm for RPM or data acquisition cables. A zip tie around the outside of the clip adds secure mounting to 28mm, 29mm, 30mm, 1.125 inch or 1.25 inch chassis tubes without compressing the lines.

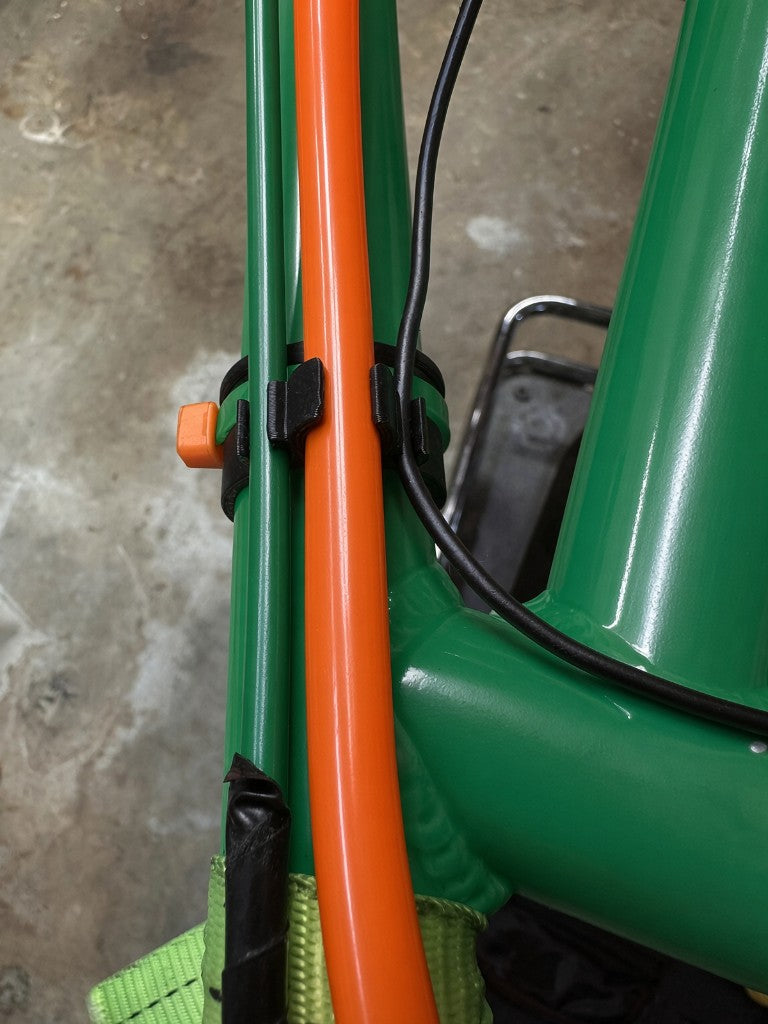

Installation takes seconds. The open C design snaps onto the tube by hand. A zip tie around the clip holds it tighter on the frame without pinching the fuel line or cables. A zip tie around the cable end of the clip keeps small wires from coming out of the hole. This simple solution has saved many races by preventing the fuel line from dragging or pinching shut. Packs contain only one color each. Add separate packs to your cart if you want to mix colors like black, neon green, red, blue or translucent green.

Specification	Detail
Material	PETG
Center Hole Diameter	9.3mm (fits 3/8 inch OD fuel line)
Throttle Cable Hole	5mm
Small Cable Hole	3mm
Compatible Tube Sizes	28mm, 29mm, 30mm, 1.125 inch, 1.25 inch

Frequently Asked Questions

What chassis tube sizes fit these 3D printed kart cable management clips?

The clips are available in options for 28mm, 29mm, 30mm, 1.125 inch and 1.25 inch chassis tubes used on most sprint kart, dirt kart and shifter kart frames.

Do these fuel line clips pinch the 3/8 inch hose used on LO206 and clone engines?

No. The center hole is 9.3mm which holds the approximately 9.5mm OD 3/8 inch fuel line snugly without restricting flow for your 4-cycle kart engine.

How do I install the cable management clips on my go-kart frame?

The C-shaped PETG clip snaps onto the chassis tube. Put a zip tie around the clip to hold it on the frame, and another around the cable end so small wires stay in the hole.

Can I mix colors in a single pack of these go kart cable clips?

Each pack of fuel line cable management clips is one single color. To get a mix, add multiple packs of your chosen colors like neon green, black, red or blue to the cart.

What pack sizes and prices are available?

A single clip is $4 in black and $6 in every other color. A 4-pack is $9 black or $11 any other color. A 6-pack is $12 black or $14 any other color. A 10-pack is $15 black or $17 any other color. Each pack is one color.

⚡ Product Highlights

This clip snaps onto kart chassis tubes to keep fuel lines and cables in place. Printed in PETG for strength and resistance to engine bay heat. Center hole measures 9.3 mm to fit 3/8 inch OD fuel line without restricting flow. 5 mm hole secures standard throttle cable housing. 3 mm hole routes smaller wires such as RPM or data acquisition cables. Compatible with chassis tubes sized 28 mm, 29 mm, 30 mm, 1.125 inch or 1.25 inch. A zip tie around the clip or the cable end holds everything without pinching the lines. Prevents hoses from dragging on the track or kinking during cornering.
