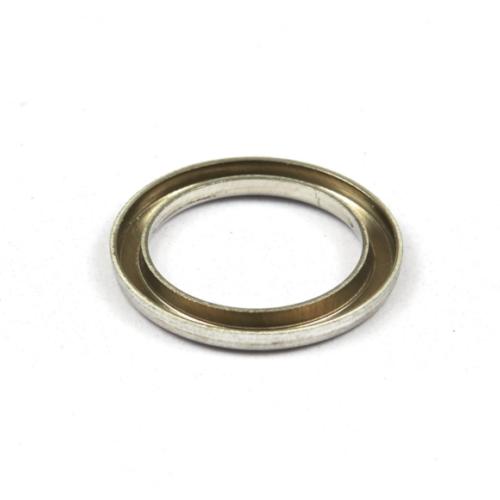

Diaphragm Spring Cap for Precise Raptor Tuning - Superseded by 690766

Ever wondered what keeps your carburetor's diaphragm under perfect tension? The Diaphragm Spring Cap (SKU 555113), now superseded by 690766 in Briggs Raptor engines, provides that exact control. It secures the spring, allowing consistent pressure that translates to smooth fuel pulses during high-speed runs.

This small but mighty component helps fine-tune your engine's sensitivity, making it easier to hit peak performance without constant recalibration. Racers find it invaluable for maintaining organization at the track— one cap ensures your setup stays dialed in, avoiding sloppy mixtures that slow you down. Upgrade to this for a more forgiving throttle that rewards aggressive driving.

• Stabilizes spring action for even fuel delivery.
• Simplifies maintenance in Raptor flathead systems.
• Enhances overall engine reliability under race stress.

Frequently Asked Questions

Q: Is this part still the current standard for Briggs Raptor engines?

A: No, this part (555113) has been superseded by part number 690766. While this original cap may still function in some setups, we recommend using the updated 690766 component for modern maintenance and compatibility.

Q: Why is the diaphragm spring cap important for carburetor performance?

A: The cap secures the diaphragm spring, which regulates the fuel pulse sensitivity. A properly seated cap ensures consistent fuel delivery, preventing "sloppy" mixtures that can cause your engine to bog down or lose power during high-speed runs.

Q: How do I know if my diaphragm spring cap needs replacing?

A: If you notice inconsistent throttle response, difficulty maintaining a steady fuel mixture, or if the cap shows signs of wear or cracking, it should be replaced. A loose or damaged cap can lead to erratic spring tension and poor engine performance.

Q: Does this part require any special tools for installation?

A: No special tools are required. It is a straightforward component to install during a standard carburetor rebuild or maintenance session. Ensure the spring is properly seated within the cap to maintain the correct tension.
